Coaxial Cable
Coaxial cables are a type of electrical cable that plays a crucial role in transmitting high-frequency electrical signals, particularly in applications such as telecommunications, cable television, computer networks, and more. They are designed to provide efficient, interference-resistant signal transmission. Let's delve into the world of coaxial cables, their types, and their applications.
What is a Coaxial Cable?

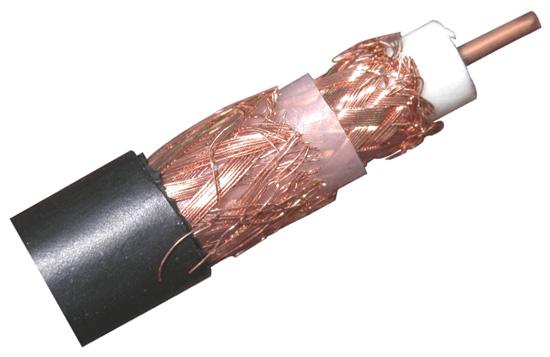

A coaxial cable, often referred to as a "coax cable," is a specialized cable constructed with an inner conductor, insulating material, a metallic shield, and an outer insulating layer. The key feature of coaxial cables is that the inner conductor and the shield share a common axis, which provides superior protection against external electromagnetic interference.
What is RG Cable?
The term "RG" in coaxial cables stands for "Radio Guide." It's a historical classification system that was used to identify various coaxial cable types. RG cables come in different numbers (e.g., RG-6, RG-59) and were widely used for different applications. However, the RG classification system is somewhat outdated, and modern coaxial cables are often designated with more precise specifications.
How Do Coaxial Cables Work?
Coaxial cables work by transmitting electrical signals as a combination of an electrical field between the inner conductor and a return path provided by the outer metallic shield. This construction minimizes signal loss due to interference, making coaxial cables ideal for high-frequency applications.
Transmission Speeds:
The transmission speeds of coaxial cables vary depending on the type and application. In general, coaxial cables can support data rates ranging from several megabits per second (Mbps) to multiple gigabits per second (Gbps). For instance, RG-6 coaxial cables are commonly used for high-definition television (HDTV) and can support high data rates.
Advantages and Disadvantages of Coaxial Cables:
Advantages:
- Excellent shielding and interference resistance.
- Suitable for high-frequency applications.
- Durable and long-lasting.
- Versatile and used in various applications.
Disadvantages:
- Bulkier than some other cable types.
- Can be more challenging to install compared to twisted pair cables.
- Limited in terms of bending radius.
Types of Coaxial Cables:
- RG-6: Commonly used for cable television and satellite installations.
- RG-59: Often used for analog video signals and security camera installations.
- RG-11: Suitable for longer cable television and data transmission runs.
- Thinnet (10Base2): Used in older Ethernet networks.
- Thicknet (10Base5): Also used in older Ethernet networks.
Application Areas of Coaxial Cables:
- Television: Coaxial cables are used to connect cable or satellite television signals to television sets.
- Data Networks: They are used in data networks, particularly in the past for Ethernet connections.
- Telecommunications: Coaxial cables are vital in telecommunications infrastructure.
- CCTV and Security: Used to connect security cameras to monitoring equipment.
- Radio Frequency (RF) Signals: Coaxial cables are used for RF signal transmission in applications such as radio broadcasting.
Coaxial Cable Connector Types:
- F-connector: Commonly used for cable television and satellite connections.
- BNC (Bayonet Neill–Concelman): Used in various applications, including RF and video signals.
- N-connector: Typically used in RF and microwave applications.
Popular Brands that Manufacture Coaxial Cables:
- Commscope: A global leader in network infrastructure solutions, Commscope offers a wide range of coaxial cables for various applications.
- Times Microwave Systems: Known for high-performance coaxial cable solutions, particularly in RF and microwave applications.
- Belden: Belden provides a comprehensive range of cables, including coaxial cables, for data transmission, broadcasting, and industrial applications.
